Product specification:
Platform: sc9863a
Operating system: Android
Frequency band:
TDD: BAND38 BAND39 BAND40 BAND41
FDD: BAND1 BAND3 BAND5 BAND8
WCDMA: BAND1 BAND8
GSM: BAND3 BAND8
Memory: 2gb+32gb, supporting TF Card
Display screen: 2.0 inches, supporting touch screen g+f
Law Enforcement Camera: 4mp FF, ov4689 (IR-cut)
Lighting support:
flash lamp
Red and blue warning lights: one red and one blue light
Infrared lamp
Laser positioning lamp
Signal indicator
Positioning: gps&bd
Voice intercom: support public network intercom
Horn: 2535

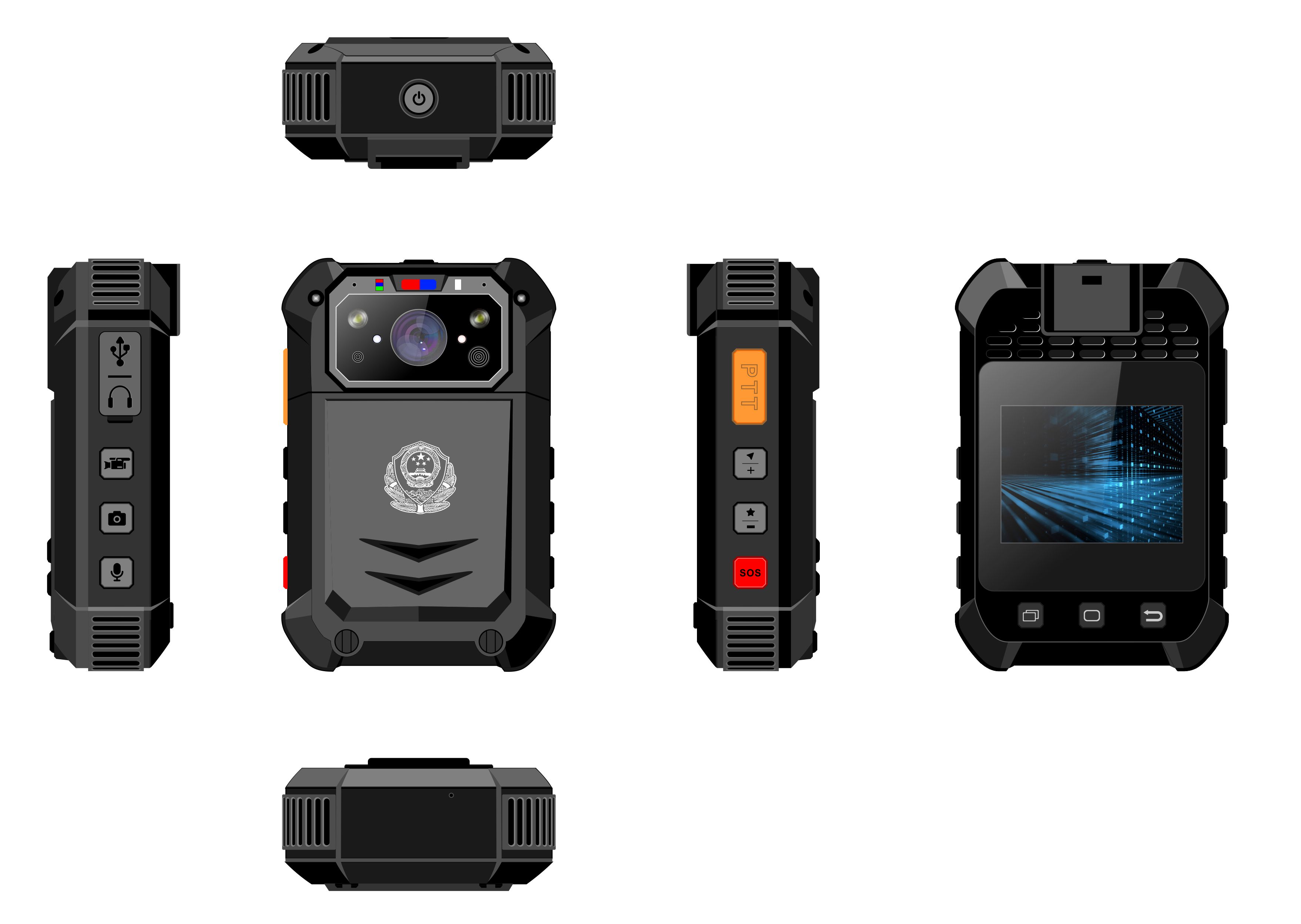

Key:
On / off key: long press on / off, short press standby / wake up
Video key: long press to start recording, and long press to end recording
Photo key: long press this key to take photos, and then long press it to exit
Recording key: long press to start recording, and long press to end recording
Intercom key: press and hold PTT key to talk, release and send
Laser positioning key / volume +: long press the laser positioning light on, long press the light off, and short press to adjust the volume
Key to highlight - Volume -: the law enforcement camera starts, long press to highlight the video, short press to adjust the volume
Emergency alarm key: long press SOS to alarm
Battery: 2400mAh (low temperature battery, built-in removable)
Backup battery: 50mah (built-in non removable)
Video size:
Full high definition: 1920x1080 (30fps)
High definition: 1280x720 (30fps)
Standard definition: 640x480 (30fps)
D1:720X480(30FPS)
Image compression format: h.265 encoding and decoding
Video format: mp4
Recording format: AAC
Light sensor: support
Sim: single nano SIM card
USB：MICRO USB
Earphone: 3.5 earphone holder
Antenna: main antenna / diversity antenna / functional antenna: Beidou /gps/bt, WiFi
Safety regulations: contact ± 6kV, air ± 8Kv
Protection grade: IP68, drop 2 meters
Charging time: 1.5 hours
Working time: it can support the law enforcement recorder to record continuously for 5 hours
Other functions:Bluetooth/Hall/Wifi/OTG/Mic
Size: 94.7*62.6*27.5mm
Weight: 180g (excluding peripherals)
